Extended Kalman Filter (EKF)

The Extended Kalman Filter extends the standard KF to handle non-linear systems by linearizing the dynamics using Jacobian matrices at each time step.

Fundamental Concepts

The Problem

Real-world systems are often non-linear:

\[x_k = f(x_{k-1}, dt) + w_k \quad \text{(non-linear transition)}\]

\[z_k = h(x_k) + v_k \quad \text{(non-linear measurement)}\]

Where \(f\) and \(h\) are non-linear functions. The standard KF cannot handle this directly because it assumes linearity.

The Solution: Linearization

The EKF approximates the non-linear functions using a first-order Taylor expansion around the current estimate:

\[f(x) \approx f(\hat{x}) + F (x - \hat{x})\]

Where \(F = \frac{\partial f}{\partial x}\bigg|_{\hat{x}}\) is the Jacobian matrix.

The Algorithm

Predict:

\[\hat{x}_{k|k-1} = f(\hat{x}_{k-1}, dt)$$ $$P_{k|k-1} = F_k P_{k-1} F_k^T + Q\]

Update:

\[K_k = P_{k|k-1} H_k^T (H_k P_{k|k-1} H_k^T + R)^{-1}$$ $$\hat{x}_k = \hat{x}_{k|k-1} + K_k (z_k - h(\hat{x}_{k|k-1}))$$ $$P_k = (I - K_k H_k) P_{k|k-1} (I - K_k H_k)^T + K_k R K_k^T\]

Jacobian Required

The EKF requires you to compute Jacobians (\(F\) and \(H\)) analytically. If your system is highly non-linear, this linearization can introduce significant error — consider using the UKF instead.

When to Use

✅ Use EKF when	❌ Don't use when
System is mildly non-linear	System is highly non-linear (use UKF)
You can compute Jacobians	Jacobians are hard to derive (use UKF)
Noise is Gaussian	Noise is non-Gaussian (use PF)
Need to be close to the standard KF	—

---

How to Use

Example: Non-linear Measurement (\(z = x^2\))

import numpy as np
from kalbee import ExtendedKalmanFilter

# State: single variable
state = np.array([[2.0]])
covariance = np.eye(1) * 1.0
Q = np.eye(1) * 0.01
R = np.eye(1) * 0.1

# Non-linear functions
def f(x, dt):
    """State transition: constant state."""
    return x

def F_jacobian(x, dt):
    """Jacobian of f: df/dx = I."""
    return np.array([[1.0]])

def h(x):
    """Measurement function: z = x^2."""
    return x ** 2

def H_jacobian(x):
    """Jacobian of h: dh/dx = 2x."""
    return np.array([[2 * x[0, 0]]])

# Initialize EKF
ekf = ExtendedKalmanFilter(
    state, covariance, Q, R,
    transition_function=f,
    measurement_function=h,
    transition_jacobian=F_jacobian,
    measurement_jacobian=H_jacobian,
)

# Simulate
np.random.seed(42)
true_state = 2.0

for _ in range(10):
    ekf.predict(dt=1.0)
    z = np.array([[true_state**2 + np.random.randn() * 0.1]])
    ekf.update(z)
    print(f"True: {true_state:.2f}  Estimated: {ekf.x[0,0]:.4f}")

Passing Functions via kwargs

You can also pass functions dynamically:

ekf = ExtendedKalmanFilter(state, covariance, Q, R)

# Pass functions at call time
ekf.predict(dt=0.1, f=my_transition, F=my_jacobian)
ekf.update(measurement, h=my_measurement, H=my_meas_jacobian)

---

Run an Experiment

from kalbee import run_experiment

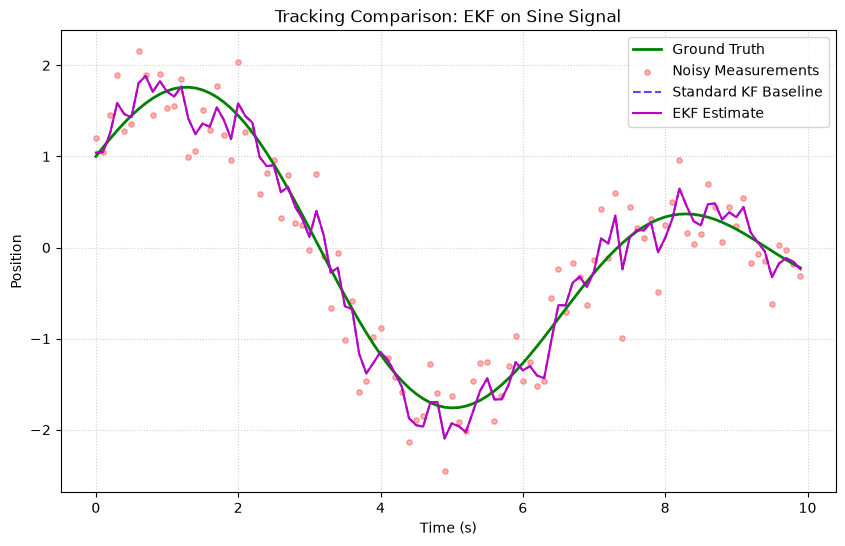

# Compare EKF with other filters on a sine wave
report = run_experiment(
    signal="sine",
    filters=["kf", "ekf", "ukf"],
    noise_std=0.3,
    duration=10.0,
    seed=42,
)
print(report.summary())

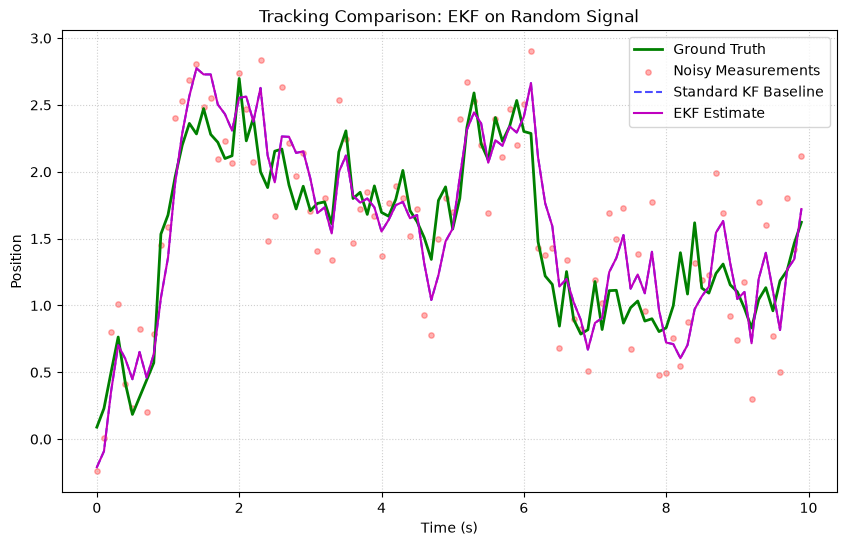

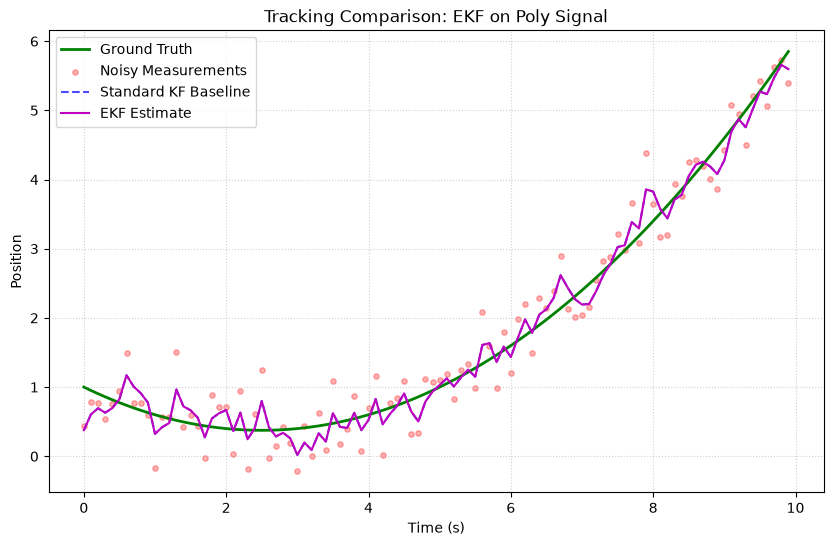

EKF vs KF

On the sine signal, the EKF typically performs similarly to the KF because the experiment runner uses a constant-velocity model. The EKF's advantage shows when you have genuinely non-linear dynamics that cannot be captured by a linear \(F\) matrix.
