Information Filter (IF)

The Information Filter is the algebraic dual of the Kalman Filter. It operates in information space using the information matrix \(Y = P^{-1}\) and information state \(\hat{y} = P^{-1}x\), making multi-sensor fusion trivially simple.

Fundamental Concepts

Dual Representation

Standard KF	Information Filter
State \(x\)	Information state \(\hat{y} = P^{-1}x\)
Covariance \(P\)	Information matrix \(Y = P^{-1}\)
Larger \(P\) = more uncertain	Larger \(Y\) = more certain

Key Advantage: Additive Update

In the standard KF, the update involves matrix inversion. In the IF, the measurement update is purely additive:

\[ \begin{aligned} Y_k &= Y_{k|k-1} + H^T R^{-1} H \\ \hat{y}_k &= \hat{y}_{k|k-1} + H^T R^{-1} z \end{aligned} \]

This means multi-sensor fusion is simply addition — no complex matrix algebra needed!

When to Use

✅ Use IF when	❌ Don't use when
Fusing data from multiple sensors	Only one sensor (KF is simpler)
Distributed sensor networks	Prior is very uncertain (\(P^{-1}\) may not exist)
Want simple fusion math	System is non-linear (use EKF/UKF)

---

How to Use

Basic Example

import numpy as np
from kalbee import InformationFilter

state = np.array([[0.0], [0.0]])
cov = np.eye(2) * 10.0
F = np.array([[1, 1], [0, 1]])
Q = np.eye(2) * 0.01
H = np.array([[1.0, 0.0]])
R = np.array([[0.5]])

inf = InformationFilter(state, cov, F, Q, H, R)

# Predict & update — same interface as KF
for t in range(1, 6):
    inf.predict()
    inf.update(np.array([[float(t)]]))
    print(f"State: {inf.x[0,0]:.2f}  Info matrix trace: {np.trace(inf.Y):.2f}")

Multi-Sensor Fusion

The killer feature — fuse information from external sources:

# Main filter with sensor 1
inf = InformationFilter(state, cov, F, Q, H, R)
inf.predict()
inf.update(np.array([[5.0]]))  # Sensor 1 measurement

# Sensor 2 provides its own information contribution
sensor2_info_matrix = H.T @ np.linalg.inv(R) @ H   # H'R^{-1}H
sensor2_info_state = H.T @ np.linalg.inv(R) @ np.array([[5.1]])  # H'R^{-1}z

# Fuse — it's just addition!
inf.fuse(sensor2_info_matrix, sensor2_info_state)
print(f"Fused state: {inf.x[0,0]:.2f}")
print(f"Fused covariance: {inf.P[0,0]:.4f}")  # Lower = more certain

---

Run an Experiment

from kalbee import run_experiment

report = run_experiment(
    signal="linear",
    filters=["kf", "if"],  # Compare KF and IF
    noise_std=0.3,
    duration=10.0,
    seed=42,
)
print(report.summary())
# They should give nearly identical results (they're mathematically dual)

KF ≡ IF

The Information Filter and Kalman Filter are mathematically equivalent — they produce the same estimates. The difference is computational: the IF is more efficient for multi-sensor fusion, while the KF is simpler for single-sensor systems.

---

Simulation Results

Here is the tracking performance of the Information Filter (IF) compared against the Standard Kalman Filter baseline on three different signal trajectories:

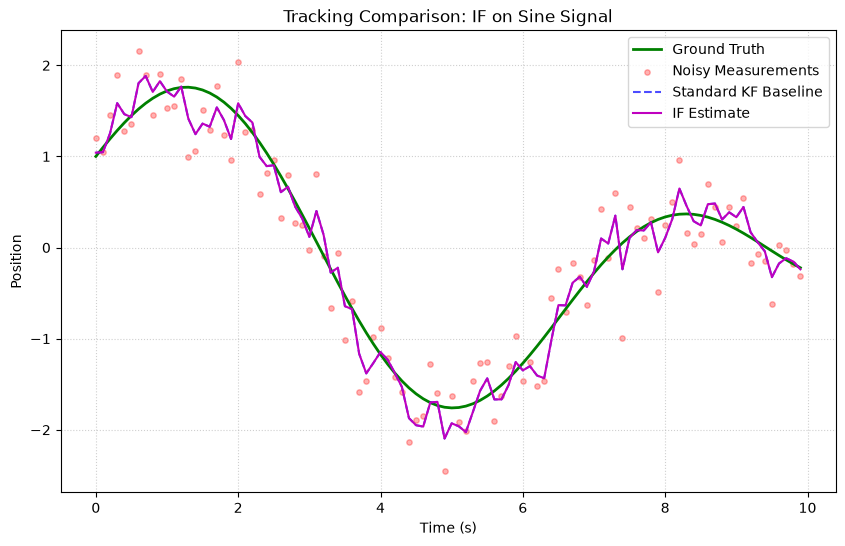

1. Sine/Cosine Signal

• Analysis: As the mathematical dual of the Kalman Filter, the Information Filter (IF) produces identical trajectory estimates to the Standard KF baseline.

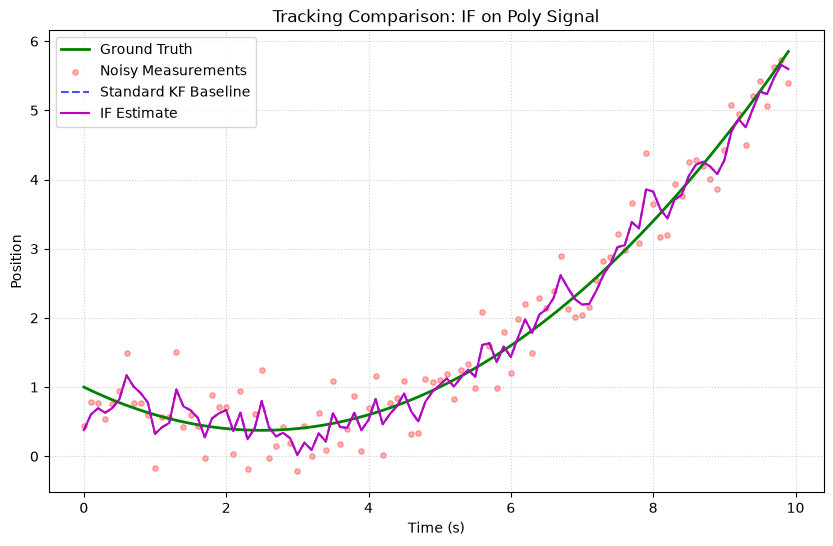

2. Polynomial (Degree 2) Signal

• Analysis: The IF exhibits the same tracking lag during acceleration phases, since it shares the linear constant-velocity state space representation.

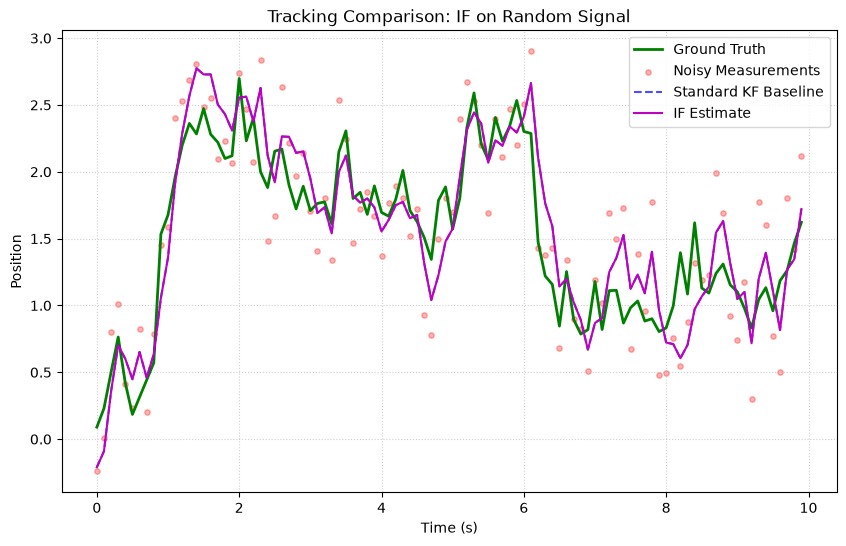

3. Random Walk Signal

• Analysis: The IF matches the standard KF baseline exactly under random walk drift, demonstrating correct algebraic equivalence in information space.
