Particle Filter (PF)

The Particle Filter (Sequential Monte Carlo) is the most general filter in kalbee. It handles non-linear dynamics with non-Gaussian noise distributions by representing the state probability as a set of weighted particles.

Fundamental Concepts

The Idea

Instead of representing the state as a single point + covariance (like KF), the Particle Filter uses many sample points (particles), each representing a possible state:

\[p(x_k) \approx \sum_{i=1}^{N} w_k^{(i)} \delta(x_k - x_k^{(i)})\]

Where \(x_k^{(i)}\) are particles and \(w_k^{(i)}\) are their weights.

The Algorithm

1. Initialize: Draw \(N\) particles from the prior distribution
2. Predict: Propagate each particle through the transition function + noise
3. Update: Weight each particle by how well it explains the measurement
4. Resample: Replace low-weight particles with copies of high-weight ones

Resampling

Without resampling, particle weights degenerate — eventually only one particle has significant weight. kalbee uses systematic resampling which:

• Is \(O(N)\) (very fast)
• Produces low-variance samples
• Triggers automatically when \(N_{\text{eff}} < \text{threshold} \times N\)

The effective sample size is:

\[N_{\text{eff}} = \frac{1}{\sum_{i=1}^{N} (w^{(i)})^2}\]

When to Use

✅ Use PF when	❌ Don't use when
Noise is non-Gaussian	State dimension is high (\(n > 5\), curse of dimensionality)
System is highly non-linear	Real-time speed is critical (many particles = slow)
Multi-modal distributions	Simple linear system (KF is much faster)
No closed-form model needed	—

---

How to Use

Basic Example

import numpy as np
from kalbee import ParticleFilter

state = np.array([[0.0]])
covariance = np.eye(1) * 5.0
R = np.eye(1) * 0.5

def transition(x, dt):
    return x + dt  # Constant velocity

def measurement(x):
    return x  # Directly observe position

pf = ParticleFilter(
    state=state,
    covariance=covariance,
    transition_function=transition,
    measurement_function=measurement,
    measurement_covariance=R,
    num_particles=1000,
    resample_threshold=0.5,
)

# Track
np.random.seed(42)
for t in range(1, 11):
    pf.predict(dt=1.0)
    z = np.array([[float(t) + np.random.randn() * 0.5]])
    pf.update(z)
    print(f"True: {t}  Estimated: {pf.x[0,0]:.2f}")

Custom Noise Function

Control the process noise distribution:

def my_noise(num_particles):
    """Non-Gaussian noise: mixture of two Gaussians."""
    noise = np.zeros((num_particles, 1))
    for i in range(num_particles):
        if np.random.rand() < 0.5:
            noise[i] = np.random.randn() * 0.1
        else:
            noise[i] = np.random.randn() * 1.0 + 3.0
    return noise

pf = ParticleFilter(
    state=state,
    covariance=covariance,
    transition_function=transition,
    measurement_function=measurement,
    measurement_covariance=R,
    noise_function=my_noise,
    num_particles=2000,
)

Diagnostics

# Check particle health
n_eff = pf._effective_particles()
print(f"Effective particles: {n_eff:.0f} / {pf.num_particles}")

---

Run an Experiment

from kalbee import run_experiment

report = run_experiment(
    signal="step",                     # Step signal tests adaptation
    filters=["kf", "pf", "ukf"],
    noise_std=0.3,
    duration=10.0,
    seed=42,
)
print(report.summary())

Particle Count

In the experiment runner, the PF uses 500 particles by default. For higher-dimensional problems, increase num_particles (but expect slower execution).

---

Simulation Results

Here is the tracking performance of the Particle Filter (PF) compared against the Standard Kalman Filter baseline on three different signal trajectories:

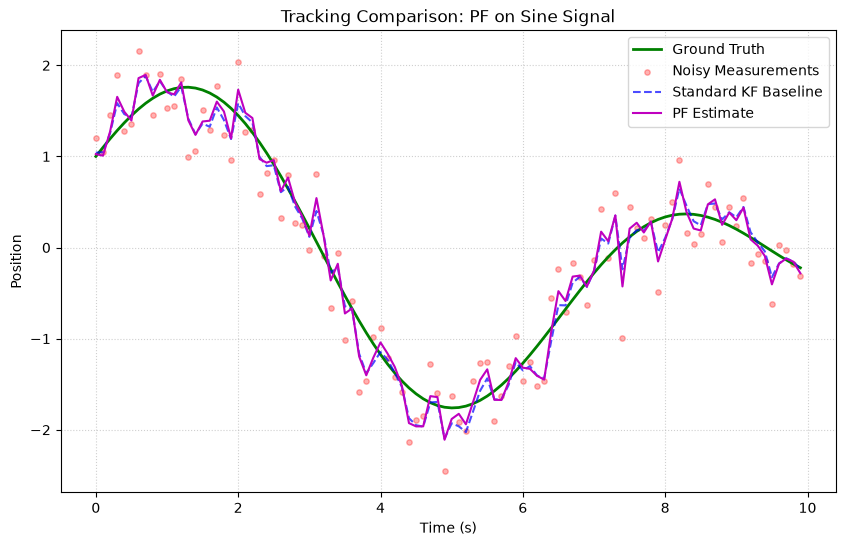

1. Sine/Cosine Signal

• Analysis: Unlike the standard KF baseline, the Particle Filter (PF) exhibits slight high-frequency jitter in its estimate. This is because the PF approximates the posterior probability distribution using discrete random particles, introducing Monte Carlo sampling variance.

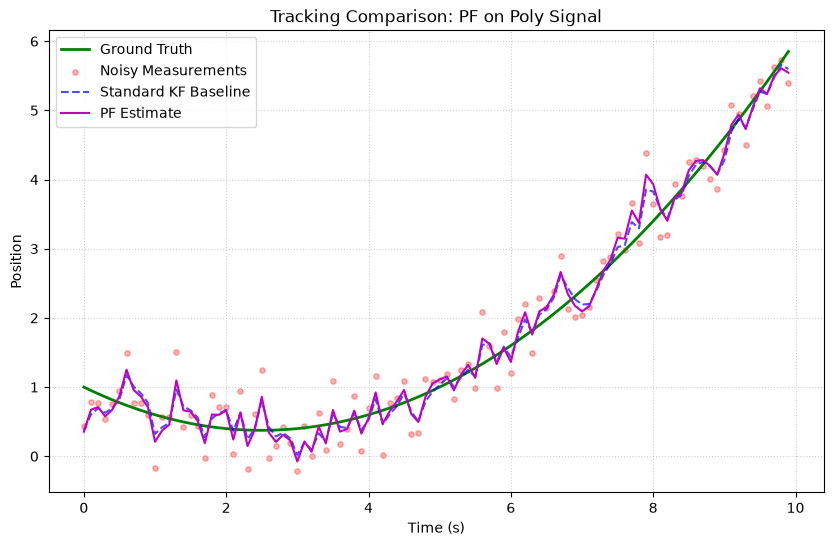

2. Polynomial (Degree 2) Signal

• Analysis: During polynomial tracking, the PF follows the curve but displays high variance and lag, demonstrating that particle dispersion is sensitive to unmodeled constant accelerations.

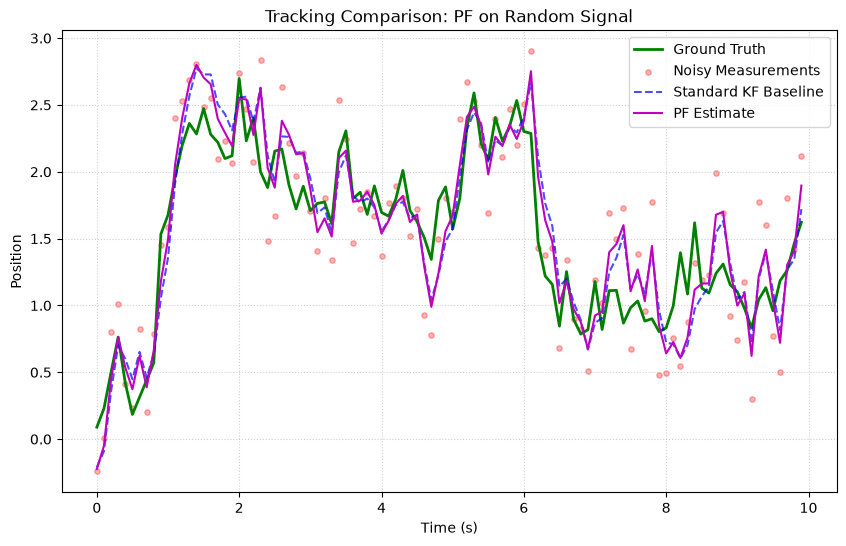

3. Random Walk Signal

• Analysis: The PF tracks the random walk drift but remains noisier than the standard KF baseline due to the random resampling step, highlighting the standard trade-off between particle representation and computational smoothness.
